Home丨 Products丨 Ball Valves丨 1pc ball valves
Fig.170
Wafer ball valve with ISO5211
General Information

ConnectionWafer type with threaded holes, PN16 / PN40

Size rangeDN15 - DN100

Pressure ratingPN40/PN16

Face to faceManufacturer standard

MaterialStainless steel 316 / PTFE, carbon steel / PTFE

Valve topISO5211

TightnessANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

Datasheet
Fig.170-BV
IOM/Manual
N/A
Compliance
DOC-EU1935-FDA
3D

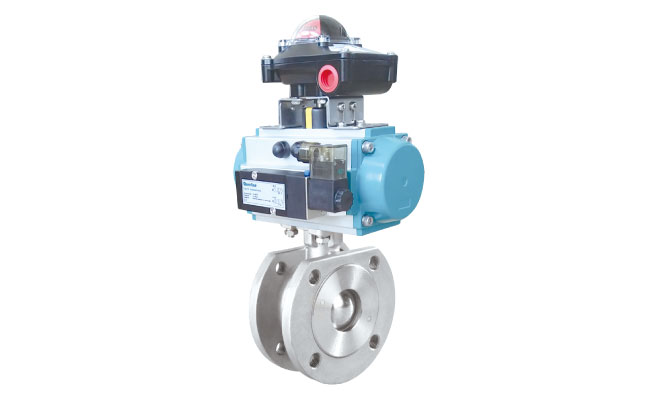

Wafer ball valve with ISO5211
Wafer ball valve with ISO5211
Wafer ball valve with ISO5211
Wafer ball valve with ISO5211
Wafer ball valve with ISO5211
Wafer ball valve with ISO5211
Design Features
Material Part List
Dimensions

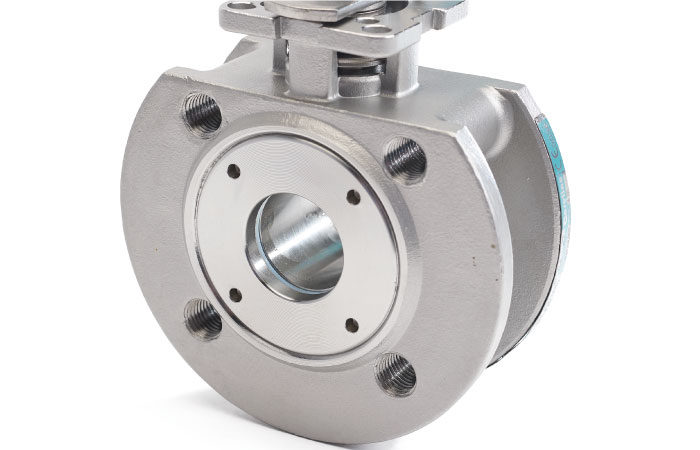

Fig.170 wafer ball valve features a compact wafer-type body with threaded holes, designed for installation between PN16 or PN40 flanges.

The space-saving construction allows direct bolting into the pipeline without nuts, making it ideal for tight installation spaces.

The valve provides reliable shut-off performance and is suitable for a wide range of industrial applications.

  • Wax casting with excellent surface finish.

  • Full bore for better Kv value.

  • Anti-static devices for ball - stem - body.

  • Blow-out proof stem.

  • Pressure relief hole in ball slot.

  • ISO5211 direct mounting pad for easy automation.
