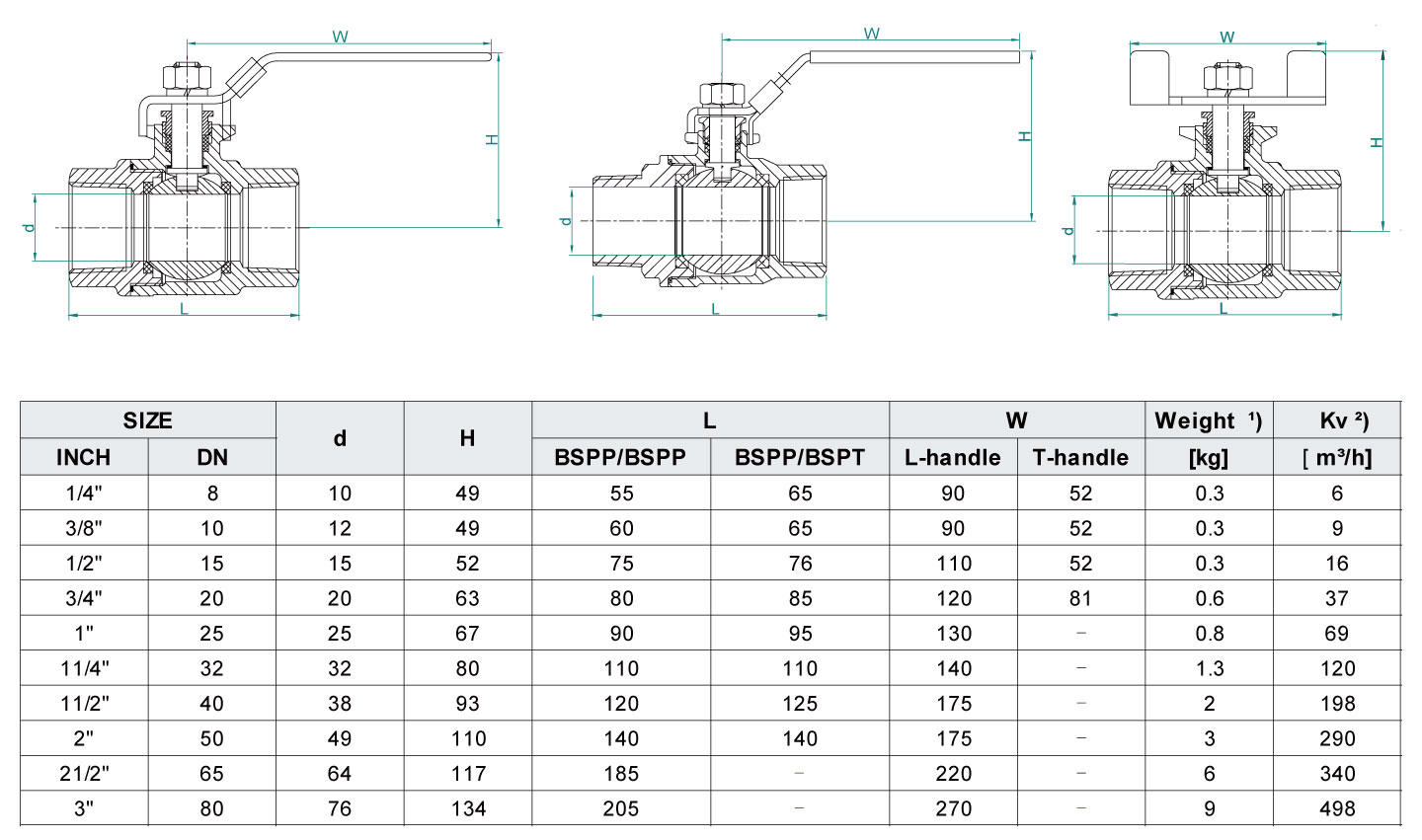

ConnectionThread ends BSPP. Alternative NPT, BSPT
Size range1/4"-3"
Pressure rating1/4"-2" : PN63
2 1/2"-3" : PN40
BodyStainless steel 316
SeatPTFE
OperationL-hanle, with or without safety lock;
T-handle

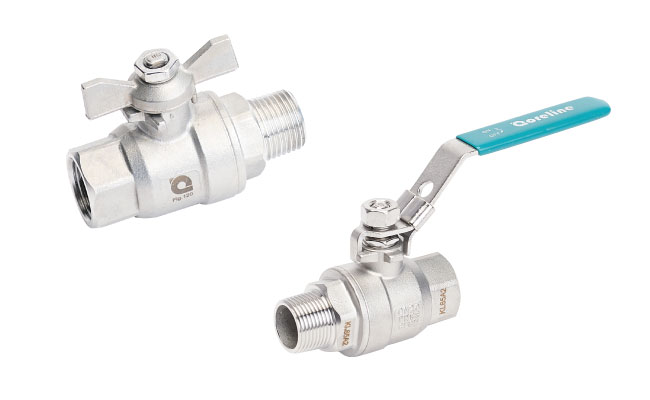

Fig.120 is a two-piece manual threaded ball valve designed for reliable shut-off in general industrial applications.
It is suitable for media such as water, air, oil, and food-grade applications (for FDA and EU 1935/2004 compliance, please inform us before ordering).

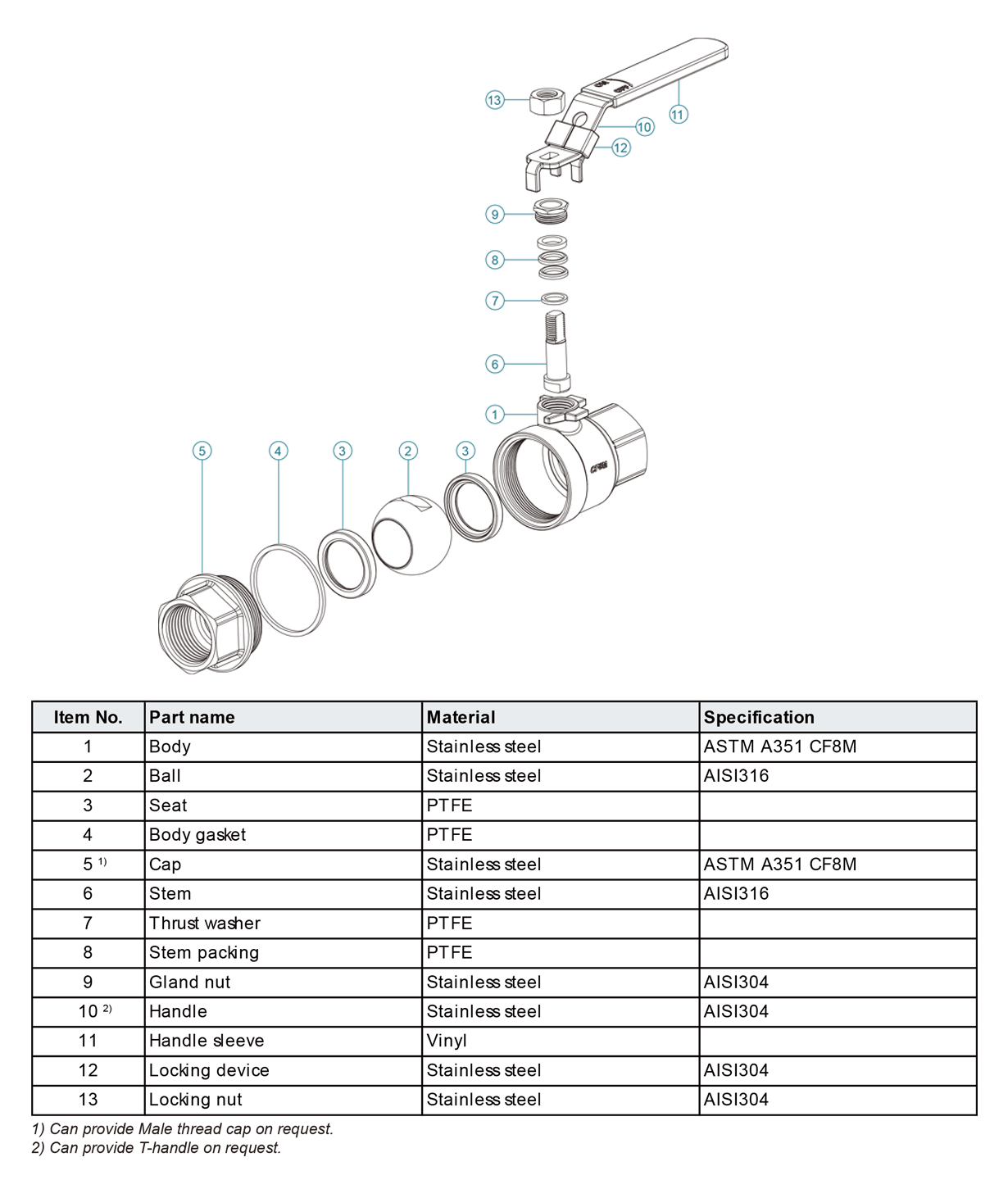

• 2-piece compact design of body.
• Full bore for better Kv value.
• Wax casting stainless steel with smooth surface.
• Pressure relief hole in ball slot in general.
• Anti-blow out stem design.
• FDA and EU1935/2004 food approved version available.
• Certificate EN10204 - 3.1.
