Fig.161

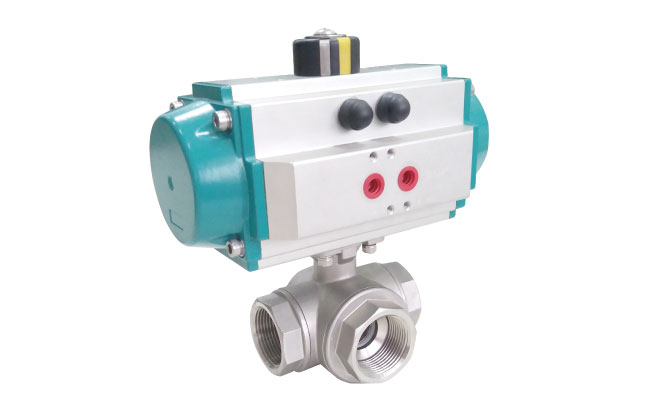

3-way thread ball valve
General Information

ConnectionThreaded ends

Port3-way; L port, T port

Size range1/2"-2”

Pressure ratingPN63 (1000psi)

Top flangeISO5211

MaterialStainless steel 316/PTFE

TightnessANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

Datasheet
IOM/Manual
N/A
Compliance
3D
3-way thread ball valve
3-way thread ball valve
3-way thread ball valve
3-way thread ball valve
Design Features

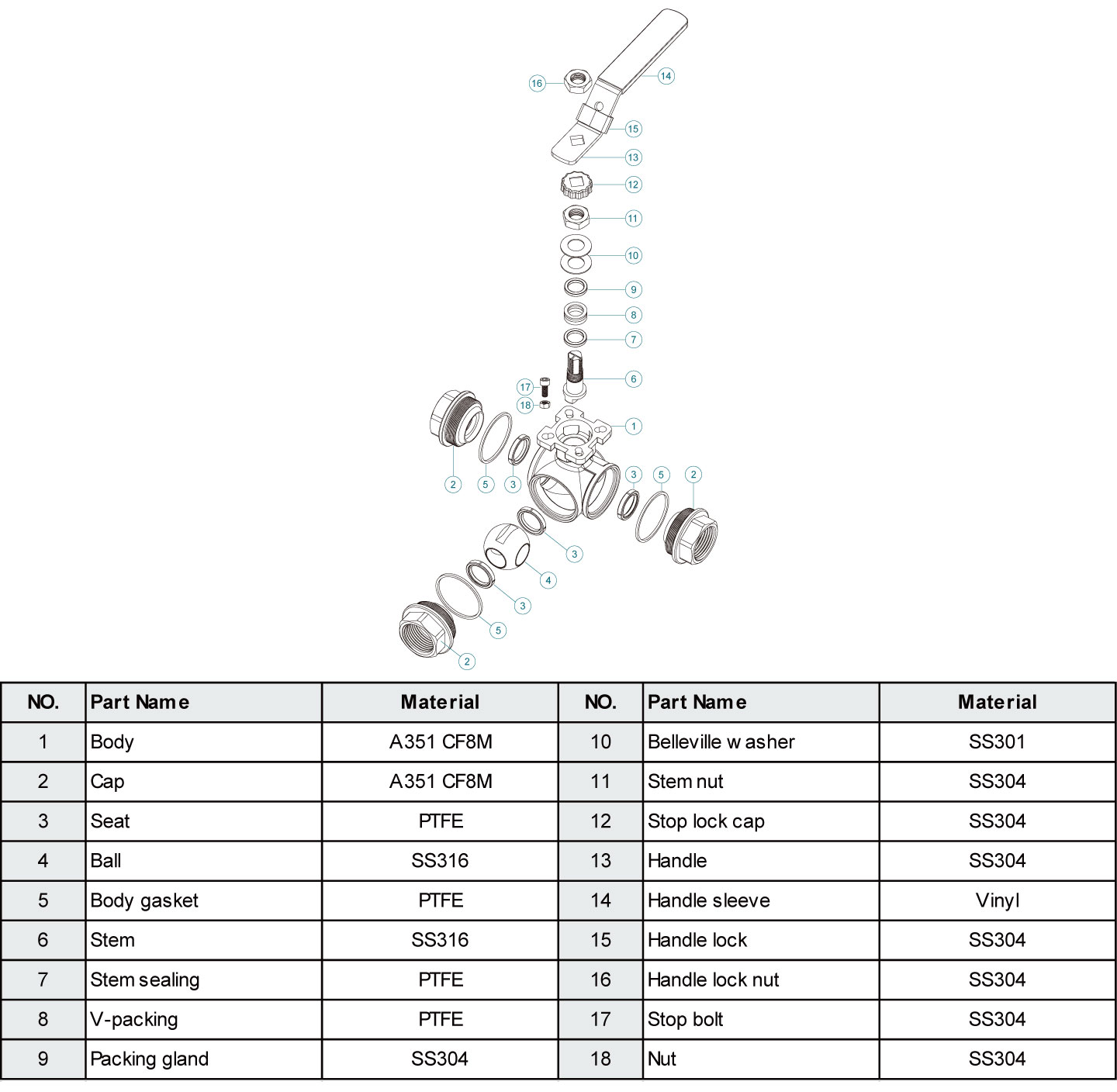

Material Part List

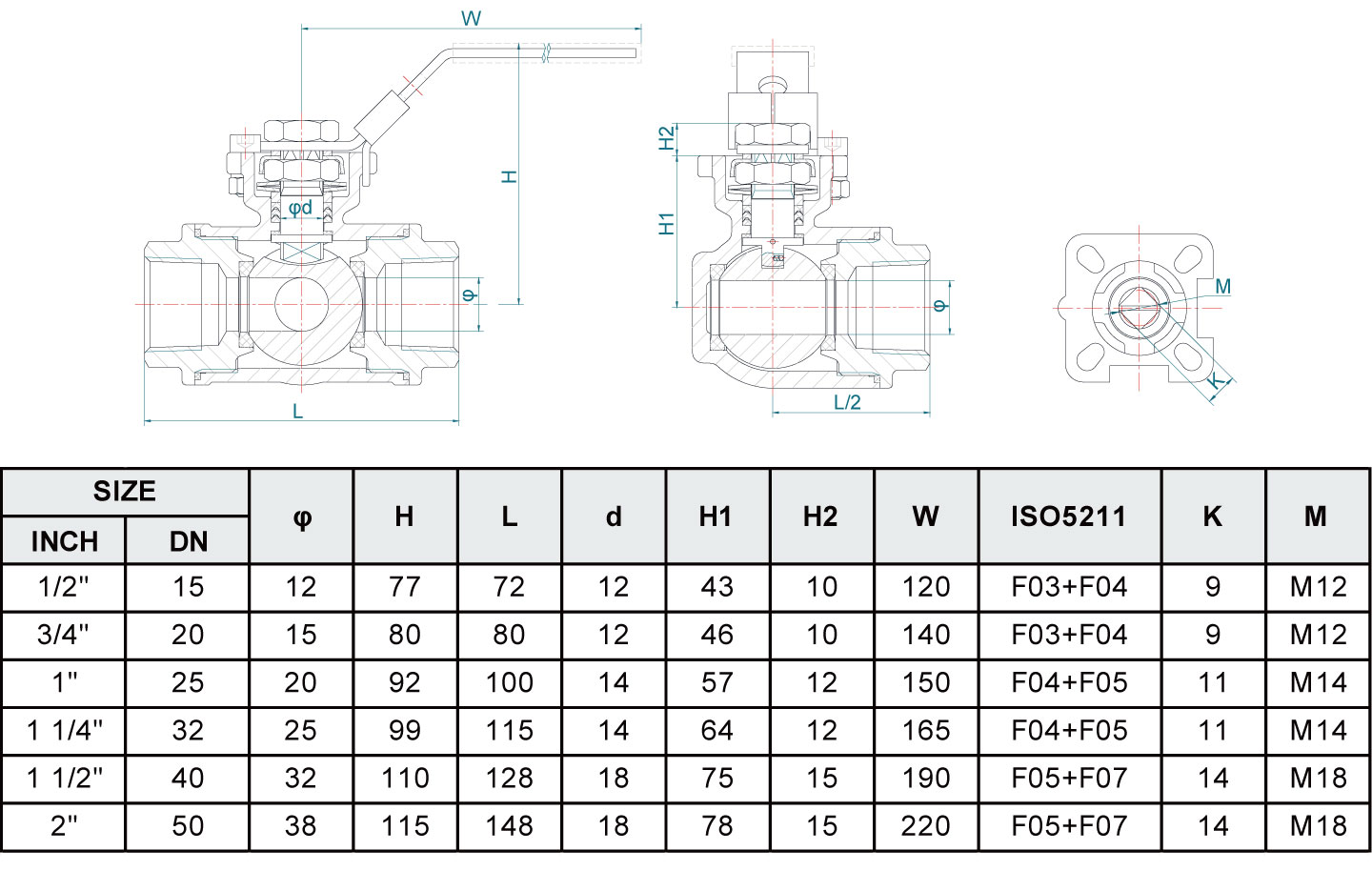

Dimensions

Fig.161 is a 3-way threaded ball valve designed for flow diverting or mixing applications in industrial piping systems.

The valve allows flexible flow control between multiple ports and provides reliable shut-off performance.

• 4 seats design which allows input flow in all ends without the occurrence of bypass (leakage) behind the ball.

Traceability: heat numbers on main parts of each valve. Material certificate EN10204-3.1 can be delivered on request.
